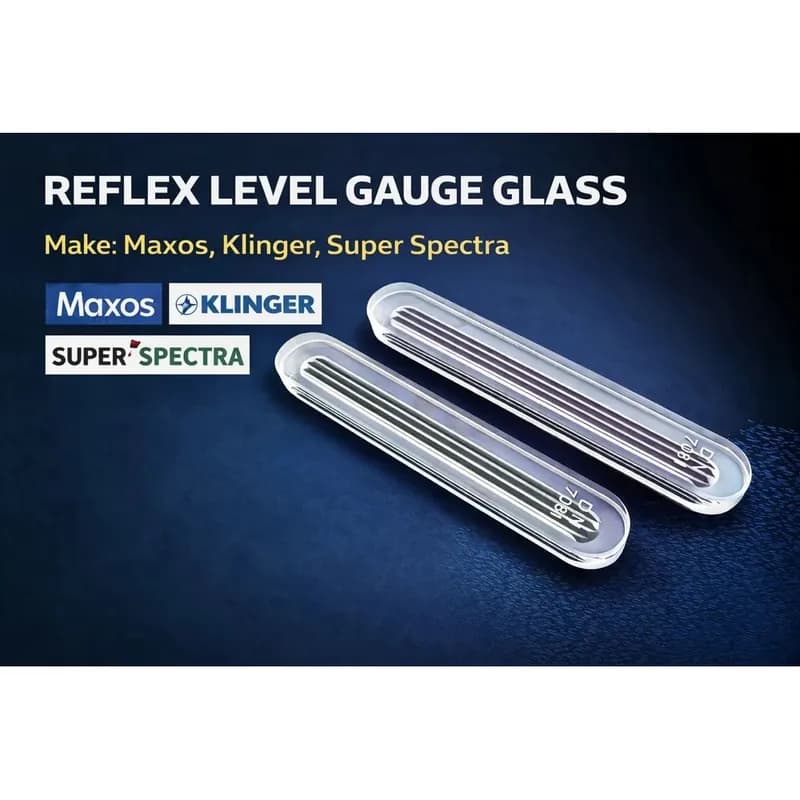

Reflex Level Gauge Glass

Toughened borosilicate replacement glass

SKU: TE-LVG-002
Make: MAXOS/KLINGER/SUPERSPECTRA
HSN: 90269000
Dispatch: Dispatch in 2 hrs

Select Size / Variation

Selected: 220 X 30 X 17 (A5)

Part No: TE-LVG-002-220X30X17A5

₹1,250.00MRP ₹1,500.00SAVE ₹250.00 (17% OFF)/piece

+ 18% GST · GST invoice with every order

Weight: 0.25 kg (250 g)

1 × ₹1,250.00: ₹1,250.00
GST 18%: ₹225.00
Total: ₹1,475.00

Estimated delivery Fri, 23 OctShipping by weight & PIN code · free above ₹5,000 with coupon

₹1,250.00

1 piece + GST

Delivery & shipping to PIN code *

Enquire Now Request Quotation Call +91 70431 42440

Genuine part
GST invoice
Technical support
Secure payment

Description

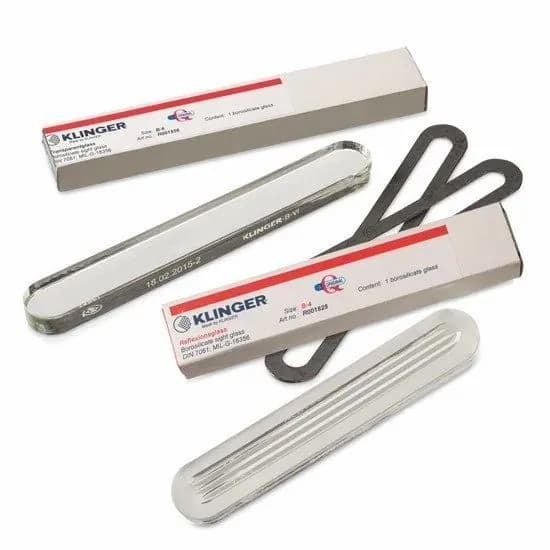

We offer high-performance gauge glass assemblies from trusted international brands — MAXOS (German origin) and KLINGER (Austrian origin) — suitable for industrial level indicators, boiler level gauges, sight glasses and other applications in process industries. These are available in both reflex type (distinct grooves for high contrast level indication) and transparent type , made from toughened borosilicate glass, meeting stringent mechanical, thermal and chemical requirements.

Specifications

Product code	TE-LVG-002
Category	Water Level Gauges
Make	MAXOS/KLINGER/SUPERSPECTRA
Centre Distance	220/220/250/280/320/340
Glass Type	Reflex
Part type	Gauge Glass
Connection Size	25 mm
Glass Length	250 mm
Boiler type	Steam boiler
Design Pressure	100 bar
Material	BOROSILE
Glass Width	30 mm
Thickness Of Glass	17MM
Glass Material	Toughened
Body Material	Borrocilocate
Usage	Mountings, Accessories
Service Type	Water, Oil, Chemical, Steam
Diameter	17MM THK
Type of Parts	Boiler Pressure Part
Working Pressure	0- 75 KG
Size	A1-9 & B1-9
Available sizes	220 X 30 X 17 (A5), 220 X 34 X 17 (B5), 250 X 30 X 17 (A6), 250 X 35 X 17 (B5), 280 X 30 X 17 (A7), 280 X 34 X 17 (B7), 320 X 30 X 17 (A8), 320 X 34 X 17 (B8), 340 X 30 X 17 (A9), 340 X 30 X 17 (B9)
Weight	0.6 kg
Compatible with	Boilers & Heaters
Country of origin	India
HSN / SAC	90269000
GST	18%
