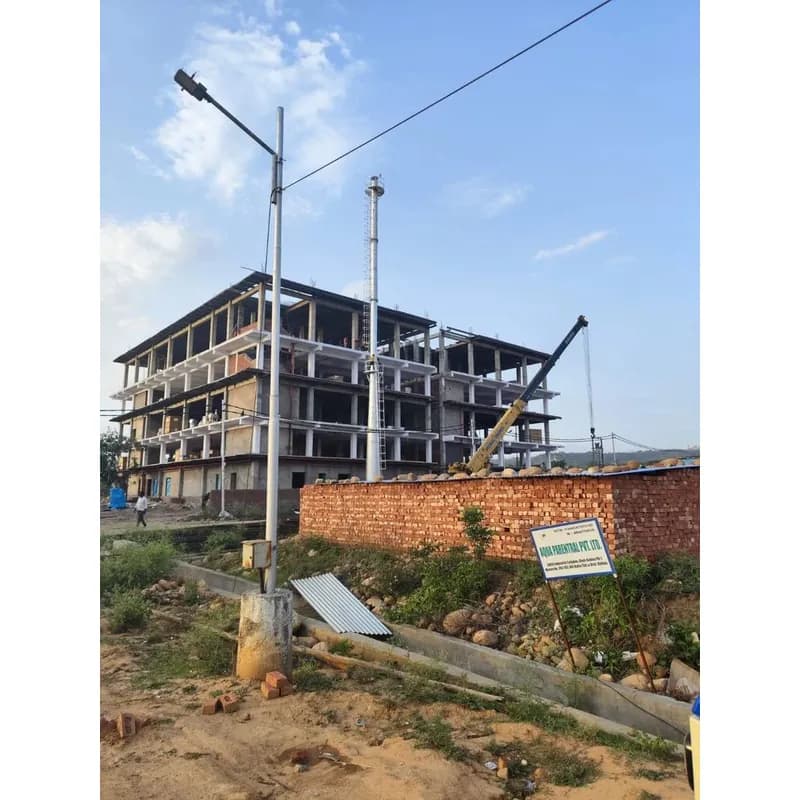

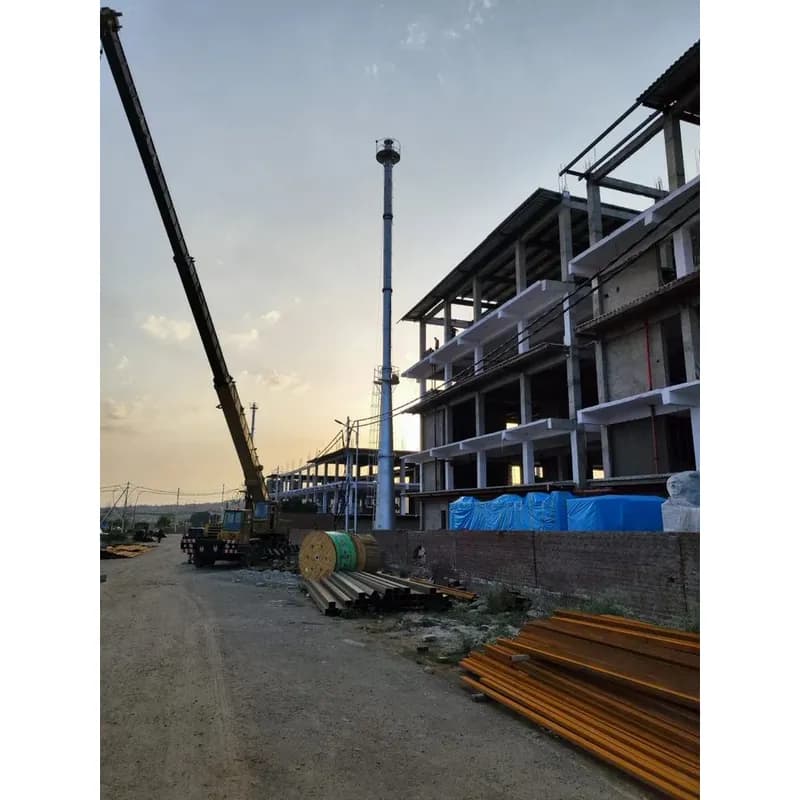

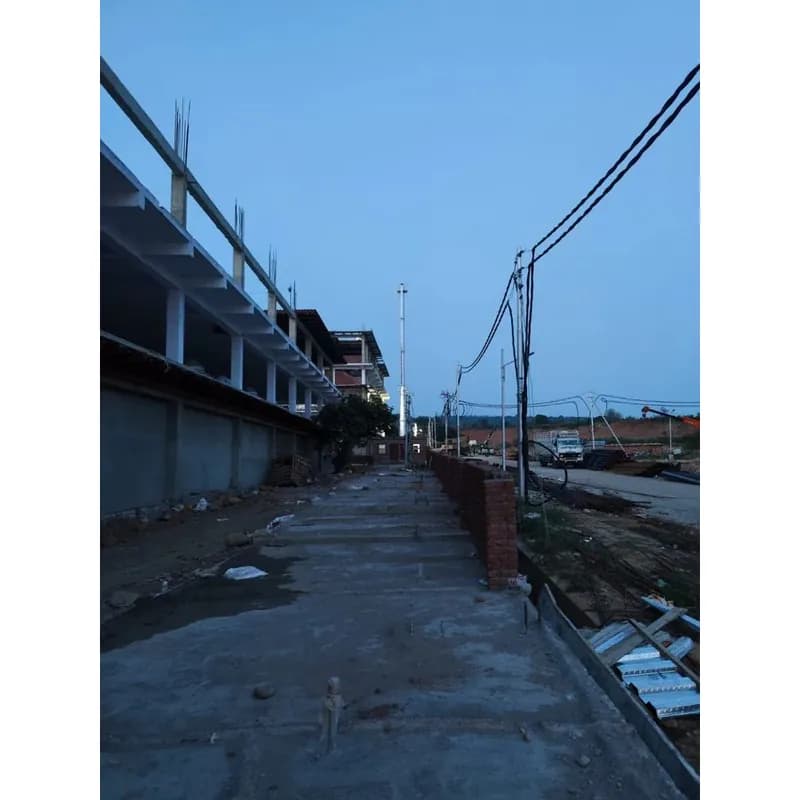

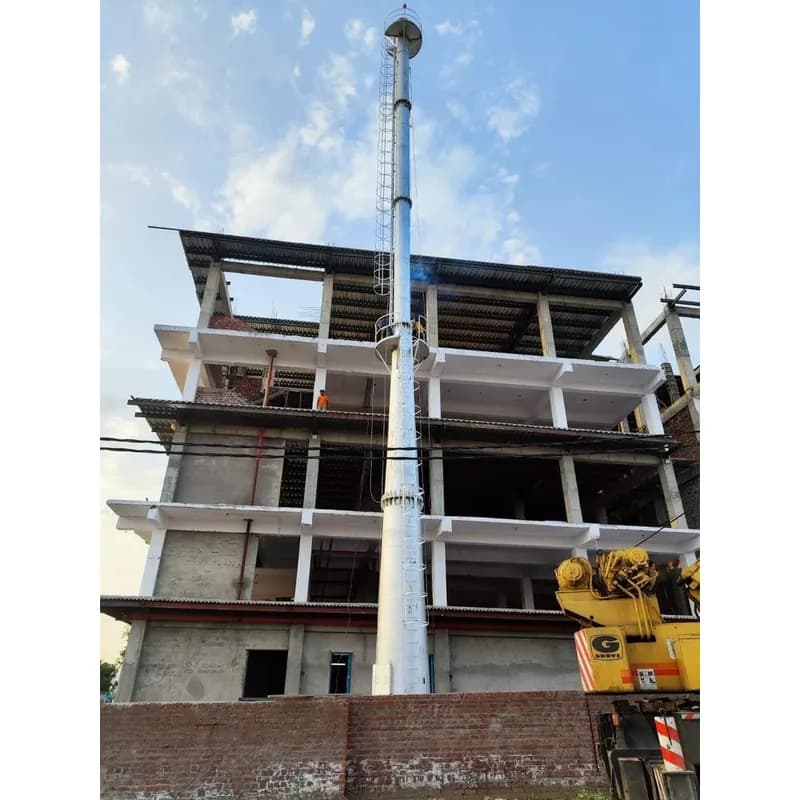

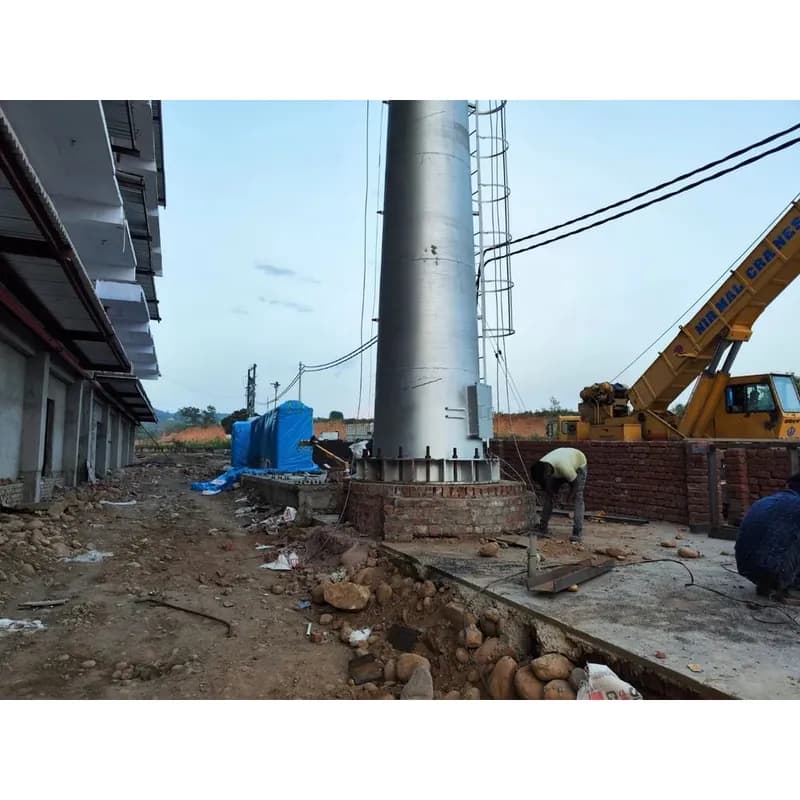

Self Supported Industrial Chimney

We offer premium-grade Self Supported Industrial Chimneys , designed for efficient exhaust of flue gases from boilers, generators, furnaces, thermic fluid heaters, and industrial processing units. Manufactured as per IS-6533 standards , our chimneys ensure durability, stability, and long operational life without requiring additional support structures. Self-Supporting Design – No need for external stay wires or structural supports. Heavy-Duty Construction – Fabricated from high-quality MS / SS materials with robust welding. Accurate Dimensions – Tailor-made as per draft requirement and emission standards. Corrosion-Resistant Coating – Heat-resistant paint with anti-corrosive primer for long life. Easy Installation – Modular, bolted segments for quick on-site assembly. Safe & Reliable Operation – Designed for stable performance under high wind loads. Base Plate, Flange & Ladder: Provided as per standards Painting: High-temperature aluminium paint / Red oxide primer A Self-Supported Industrial Chimney is a vertical steel structure designed to discharge flue gases and combustion products safely into the atmosphere at a controlled height, ensuring compliance with environmental standards. Unlike guy-wired chimneys, this design is freestanding and does not require external support systems, making it highly suitable for industries where space is limited or where ground anchoring for supporting wires is not feasible. These chimneys are commonly installed in power plants, refineries, chemical industries, boilers, process plants, and furnaces , providing reliable performance under continuous operation. The cylindrical steel shell construction is engineered to withstand wind loads, seismic forces, thermal stresses, and dynamic loads from gas flow. Self-supported chimneys are designed as tapered or straight single/multi-flue structures and fabricated from carbon steel or alloy steel with proper corrosion protection such as epoxy/PU paints or hot-dip galvanizing. Internally, they may be lined with refractory or insulating material depending on flue gas characteristics. The structure generally rests on a reinforced concrete foundation with a base plate anchoring system , ensuring stability and longevity. Modern designs conform to IS 6533 (Part 1 & 2), ASME, and international codes for structural safety and emission compliance. With customizable heights (ranging from 20 meters to 120+ meters), they offer both functional efficiency and long service life, making them a preferred choice for heavy-duty industrial applications. Internal refractory lining/ceramic wool insulation (optional) Corten steel option available for natural corrosion resistance
